| Element | Description |

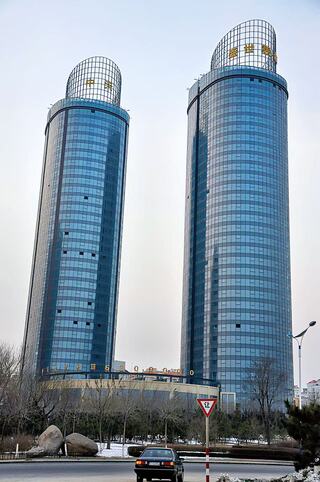

| Project Name | Yantai Shengshi Guanlan |
| Project Location | Yantai City, Shandong Province (Coastal area, Urban Landmark) |
| Total Curtain Wall Area | 22,000 square meters |
| Client Positioning | City landmark-level super-high-rise residential or high-end mixed-use complex, targeting ultimate panoramic views and top-tier living quality. |
| Core Challenge | Performance of Complex Curved Facades. The building's high, rounded tower shape required large areas of hot-bent glass. This design had to meet Low-E energy efficiency while withstanding the ultra-high wind loads of a coastal location. |
| Project Goal | To construct a coastal super-high-rise building with an iconic appearance, supreme structural safety, and premium thermal comfort. |
To ensure the Shengshi Guanlan project achieved both aesthetic and performance standards befitting a coastal landmark, we utilized high-performance glass from China Southern Glass (CSG) - Nanbo, implementing a precise, differentiated configuration for the flat base and the curved tower sections.
Double-Tempered Structure: Both the inner and outer panes are tempered. This is a non-negotiable requirement for super-high-rise buildings for superior wind load resistance and impact safety.
Hot-Bending Process (Curved Surface): Utilizing advanced thermal bending technology ensures that the curvature and the optical performance of the Low-E coating remain highly uniform and distortion-free after heat treatment.
| Zone/Type | Area | Glass Configuration (mm) | Core Advantages |
| Zone I (Flat Area/Base) | Approx. 12,000 sqm | 6Low-E Nanbo + 12a + 6 Double-Tempered IGU | Standard high-performance configuration, providing excellent thermal insulation for the lower, flatter sections. |
| Zone II (Curved Tower/Apex) | 10,000 sqm | 6Low-E Nanbo + 12a + 6 Double-Curved Tempered IGU | Overcame the technical challenges of curved glass production, achieving a flawless rounded facade while satisfying the highest wind pressure safety requirements for a super-high-rise. |
This 22,000 square meter high-performance glass facade project delivered unique value to the Yantai Shengshi Guanlan:
Visual Impact: Successfully realized the architect's design for a towering, fluid, and streamlined curved exterior. The curved Low-E glass reflects the sea light with a uniform, high-quality gloss, establishing the building as an unmistakable visual focal point on the city's coastline.
Process Mastery: The project demonstrated the ability to maintain the high energy-efficiency standards of Low-E glass during mass production of double-curved tempered units, a significant industry achievement.
Supreme Structural Safety: The double-tempered structure provides unrivaled wind load capacity, essential for the highest floors of a super-high-rise and for resisting extreme coastal weather conditions.
Thermal Comfort Control: The Low-E coating effectively manages solar heat gain, ensuring that residents enjoy uninterrupted, panoramic sea views while maintaining a stable and comfortable indoor temperature, significantly reducing cooling loads.
By perfectly integrating a complex facade design with strict performance standards, the project sets a new benchmark for high-end residential/mixed-use super-high-rises in northern coastal cities, greatly enhancing the property's market scarcity and brand premium.
The success of Yantai Shengshi Guanlan showcases our ability to seamlessly merge complex architectural aesthetics with the demanding performance requirements of super-high-rise buildings.
