In modern architecture, the pursuit of "transparency" has passed the point of mere aesthetics. Today's structural engineers and architects are stretching the boundaries of glass, demanding that the building envelope be completely transparent while acting as an impenetrable shield against structural failure, seismic activity, and extreme weather events.
Driven by urgent climate adaptation and bold architectural designs, the global laminated glass industry is undergoing a silent but deep technological transformation. If you are an architect, façade consultant, or high-end glass importer, keeping up with these three major trends in laminated glass is crucial for your upcoming iconic projects.
For decades, Polyvinyl Butyral (PVB) has been the go-to interlayer for standard safety glass. However, as contemporary designs incorporate expansive glass canopies, glass floors, and point-supported glass facades, the structural limitations of PVB have become evident. PVB is inherently soft; if both glass plies fracture, a PVB laminate exhibits significant tear and sag, risking total collapse.

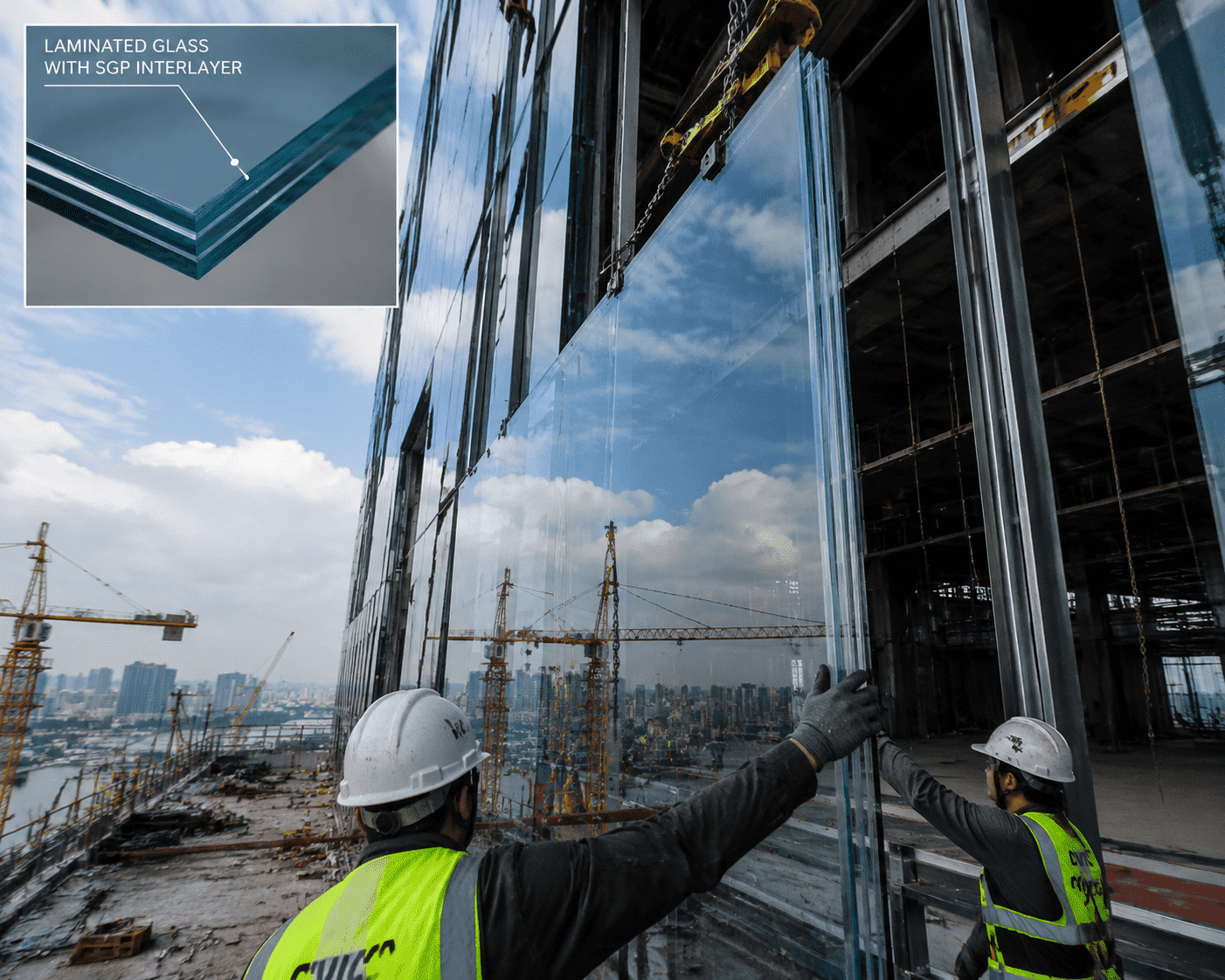

The industry is rapidly shifting toward SentryGlas® (SGP) ionoplast interlayers for heavy-duty structural applications. SGP represents a paradigm shift in glass safety engineering:
50 Times Stiffer: SGP interlayers are 50 times stiffer and 5 times stronger than conventional PVB materials.
Post-Glass-Breakage Performance: Even if both layers of tempered glass break under extreme impact, the ultra-rigid SGP interlayer maintains the structural integrity of the laminate. It remains standing upright and coherent, preventing catastrophic fallout.
Unmatched Edge Stability: SGP exhibits superior moisture resistance and zero laminate edge discoloration, making it the perfect choice for open-edge frameless installations and coastal environments.
Façade Consultant Insight: While SGP carries a premium initial cost, its extreme load-bearing capacity allows engineers to specify thinner glass laminates to achieve the same structural performance, effectively optimizing total building weight and framework costs.

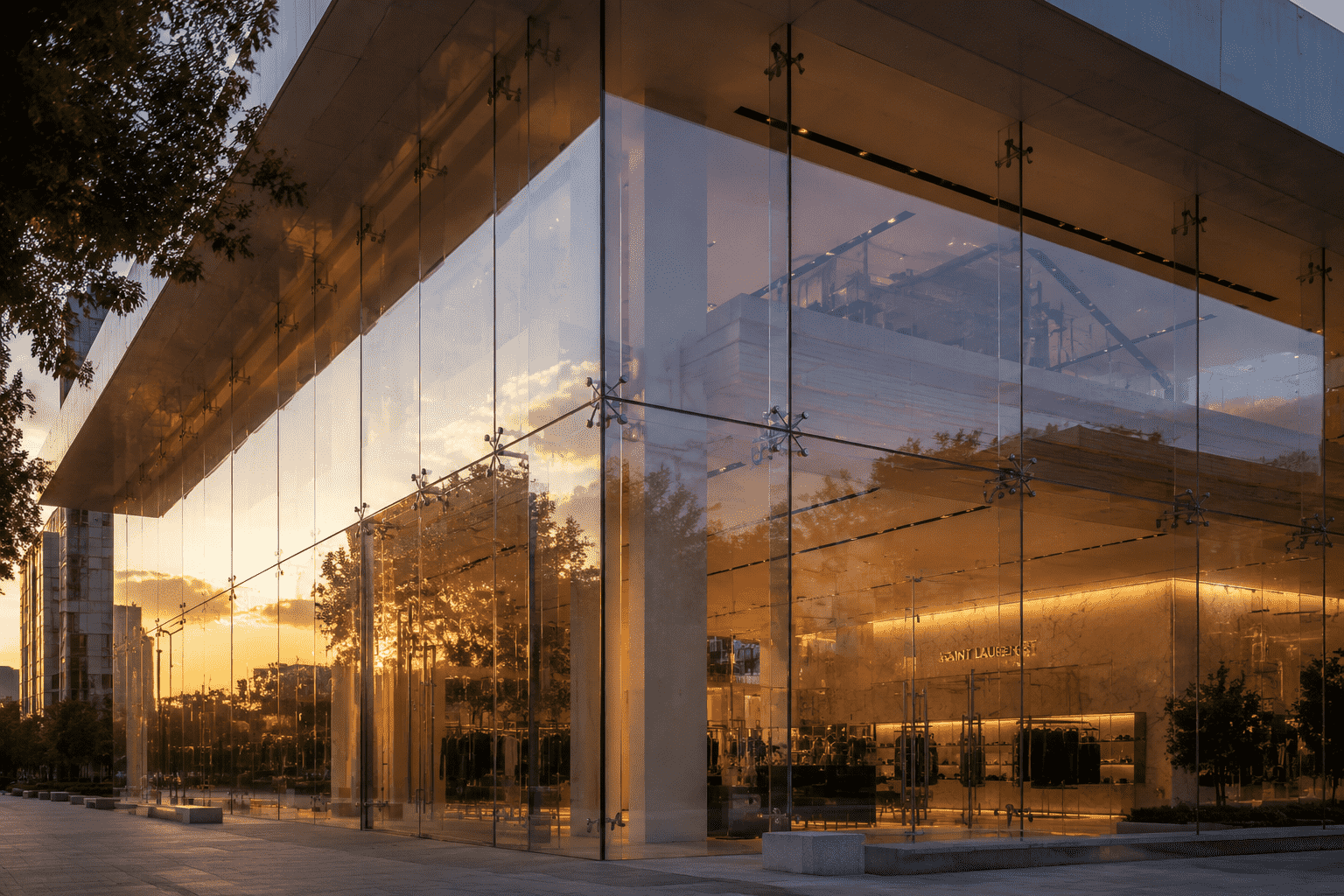

The architectural landscape has completely moved away from segmented window walls. Premium corporate headquarters, luxury flagship retail spaces, and high-end cultural landmarks now rely on continuous, multi-floor glass fins and monolithic structural sheets. The architectural world is now in the era of Jumbo (over 11 meters) and Super-Jumbo (up to 15-18 meters) laminated glass.
Technical Challenge | Conventional Processing Limits | Next-Gen Super-Jumbo Capabilities |
Autoclave Pressure Uniformity | Prone to air bubbles in sizes > 6m | Advanced multi-stage convective pressure technology ensures zero-bubble yield at 15m+ |
Ply Alignment & Planarity | Misalignment within ±2mm tolerable | High-precision mechanical matching limits edge misalignment to within 0.5mm for multi-layer laminates |
Optical Distortion Control | Visible roller waves over large spans | Intelligent flat-bed tempering systems eliminate distortion, achieving flawless anamorphic clarity |
Manufacturing and delivering a 15-meter laminated glass pane is a massive engineering feat. It requires extreme precision across raw-plate sourcing, automated clean-room handling, custom-built laminating lines, and specialized oversized autoclaves. Factories that can consistently supply flawless super-jumbo laminates are dominating the premium global supply chain.
Climate change is driving an increase in weather volatility. Coastal urban centers from Southeast Asia to the American Gulf Coast are dealing with more frequent and destructive hurricanes and typhoons. Consequently, building codes worldwide are raising wind-load and missile-impact criteria for high-rise building envelopes.
Modern laminated glass is evolving to meet these rigorous safety standards:

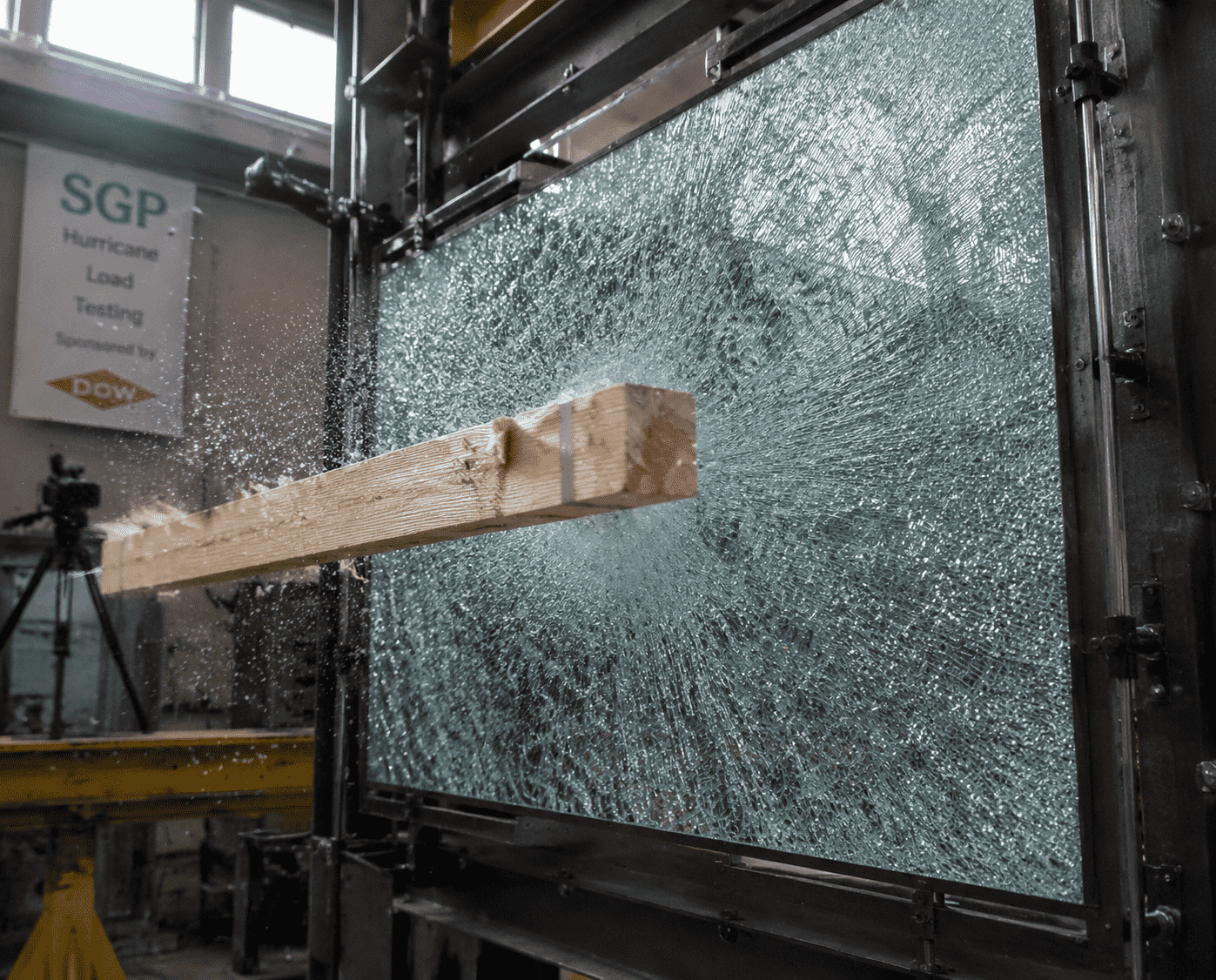

Missile-Impact Rated Systems: Engineered multi-layer SGP/PVB laminates are subjected to rigorous testing, including being struck by high-velocity lumber projectiles, to guarantee they can withstand airborne storm debris without puncturing.
Acoustic and Thermal Insulation Synergies: High-performance facades no longer treat safety and insulation as separate goals. The fastest-growing product configurations combine Acoustic-damping PVB interlayers with Double/Triple Silver Low-E coatings inside an Insulating Glass Unit (IGU). This integrated assembly effectively blocks urban noise, counters typhoon impacts, and maintains premium thermal performance.
As laminated glass transforms from a simple decorative safety element into a primary structural material, your choice of supply partner becomes critical. Sourcing next-generation laminated glass requires a manufacturer with advanced capabilities: certified clean-room environments, multi-layer SGP autoclave processing certification, and robust quality control systems capable of managing super-jumbo dimensions.
Are you designing an ambitious glass project or looking to upgrade your structural glass product portfolio? Discover our advanced processing lines for SGP laminated and jumbo-sized architectural glass. Contact our engineering team today to receive technical data and a customized quotation.
